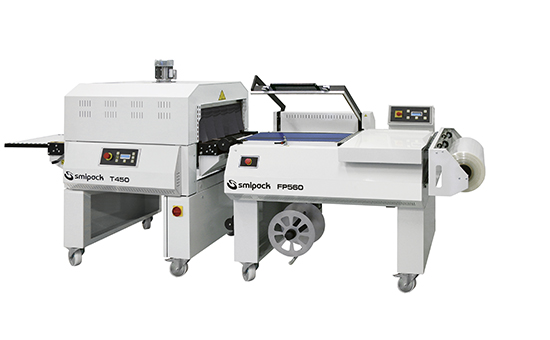

FP560 - Manual L-sealers

FP560  ,  FP560A  ,  FP560A INOX



FP870A - Semiautomatic L-sealers  ,  FP6000 - Automatic L-sealers  ,  FP6000CS



FP6000CS INOX - Automatic L-sealers in stainless steel



FP8000CS - Automatic L-sealers  ,  T450 - Tunnel for modular L-sealing machines



T450 INOX - Tunnel in stainless steel  ,  T452  ,  T452 INOX T650



T652  ,  GH1000/400 - Infeed Conveyor  ,  GHL 400  ,  GHR 280ST



GHR 280R  ,  GH2000/600 - Infeed Conveyor



GH2000/400 - Infeed Conveyor









Modularity and excellent price/quality ratios are the main features characterizing the manual, semiautomatic and fully automatic sealers of the FP series. All the models of this range can indeed be supplied with or without shrink tunnel.

The INOX version machines are ideal to satisfy the exigencies of the food industry (meat, frozen food, fish, cheese, chocolate, etc.),  and are characterized by a stainless steel frame (AISI 304) and the conveyor complying with the FDA, UE and USDA standards, concerning products in direct contact with food.

Compared to the traditional L-sealing hood packers, the FP series provides higher outputs as well as the possibility of using Polyethylene film, besides the traditional shrink films, and includes different models for outputs ranging up to 3000 packs/hour.





  • Manual sealing system
  • Double hood hold-down electromagnet, that highly reduces the pressure of the operator on the sealing arm so as to ensure a better sealing
  • Pack deviation device
  • PTFE-coated sealing blade
  • Closed-circuit liquid cooling of the sealing bars
  • Viewer of the coolant level
  • Working height of the sealer and of the tunnel adjustable by means of an external crank
  • Mobile product-holding plate, loose from the film reel support to allow a better adjustment of the film to the pack size
  • Emergency button
  • Automatic pack discharge by means of a motorized conveyor
  • Flextron® control system equipped with:
    • Alphanumeric LCD control panel provided with a 16-bit microprocessor card and solid state relays
    • Modular power section, separated from the control panel and characterized by:
      • longer-lasting solid state relays providing easier maintenance
      • in case of failure, possibility of replacing just the damaged module, without losing the data stored in the memory
    • This system allows a simple and precise control of all the machine operations, such as:
      • machine status
      • number of packs produced by an electronic pack counter
      • adjustment of the sealing temperature
      • pack discharge speed
      • delay in the opening of the sealing arm
      • possibility of scheduling up to 10 different work cycles, thus resulting in increased productivity and simplified use
      • troubleshooting
  • Reduced power consumption
  • Compliance with CE regulations


Power supply

220 - 240 V
1PH - N - PE
50/60 Hz
Installed power 2450 W
Sealing bar 560 x 430 mm
Maximum pack height 230 mm
Output up to 800 pph **
Maximum size of film reel 600 - ø 300 mm
Machine size 2010 x 790 mm
h 1050 mm
Machine net weight 129 Kg
Usable Films: Pvc, Polyolefins and Polyethylene up to 50 µ

(**) Packs per hour. The stated speed can change according to the product size, the pack collation and the type of film used.
