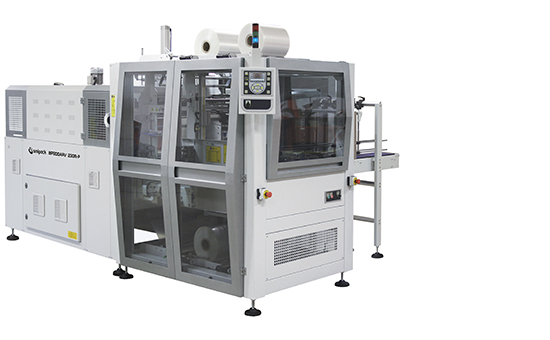

BP800ARV 230R-P - Monoblock automatic shrinkwrapper with 90° infeed and sealing bar

Semiautomatic and automatic shrinkwrappers with sealing bar, BP Series

BP600 , BP800 , BP800AS , BP802AS , BP1102AS , BP1402AS , BP800AR 350P , BP802AR 350P , BP600AR 150R



BP800AR 230R , BP802AR 230R , BP802AR 280R-S , BP800AR 150Z , BP800AR 280ST , BP802ARV 350R-S


BP800ARV 230R-P , BP802ARV 350R-SP , BP802ALV 600R , BP802ALV 600R-P , BP Duplex , DV150 , DV200


The new series of monoblock semi-automatic and automatic shrinkwrappers with sealing bar BP are extremely versatile: they can pack various products, such as glass and PET bottles, cans, boxes, trays, jars, cartons of different sizes in a wide range of pack collations. They can be used in several industry segments, such as beverages, food, chemicals, wine and spirits, cosmetics, detergents, wood, textile, graphic etc.
The BP series allows SMIPACK to meet a wide variety of customers’ demands and to ensure a very good quality/price ratio.

  • Automatic shrinkwrappers with 90° infeed
  • Automatic pack collation
  • Pad inserting device:
    • pneumatic vertical pad taking
    • pad stock 300 pcs
    • pad dimensions min. 200x120 mm max 500x350 mm
    • Pad thickness: min 2.5 mm max 3.5 mm
    • motorized pad carrying, self centering, controlled by inverter and encoder
    • mechanical pad insertion under the pack controlled by inverter and encoder, synchronized with the arrival of the products
  • Working modality: only film or film + pad
  • Single chamber tunnel
  • 90° Infeed conveyor with adjustable speed controlled by inverter
  • Product carrying by automatic left or right conveyor
  • Available infeed lanes: 1, 2, 3
  • Product presence photocells
  • Outfeed accumulation photocell
  • Infeed and outfeed obstruction photocell
  • Infeed pneumatic press rod
  • Pneumatic depressor
  • Multi-thrust system
  • Motorized pusher controlled by inverter and encoder
  • Chain pusher located between the 90° infeed conveyor and the sealing bar controlled by inverter and encoder
  • Pneumatic products guides, synchronized with the chain pusher, to facilitate the formation and transition of the pack over the sealing bar
  • Motorized upper film unwinding controlled by inverter
  • Motorized lower film unwinding
  • Included: feet for the machine fastening, cooling fan at the tunnel outlet
  • Automatic, semiautomatic, pass through mode
  • Monoblock frame
  • Pneumatic sealing bar
  • Pneumatic film cut by cold blade
  • Sealing bar equipped with safety sensors
  • Rollers are positioned on the upper and lower unwinders to make the reels easier to load
  • Metric graduation based film reels centering system
  • FLXMOD® control system equipped with 4.3" graphic LCD control panel with PLC
  • Power and control section made up of:
    • Inverter
    • IN/OUT (Input/Output) command modules with 16 digital inputs/outputs
    • Analog inputs command modules
    • Thermocouple reading control modules
    • Such system allows a simple and accurate control of all current operations, that is:
      • storing of 20 different working cycles
      • automatic control of the bars height
      • speed adjustment of the shrinkwrapper and tunnel conveyors by means of an inverter
      • process statistics
  • Tunnel air flow adjustable by means of independent deflectors
  • Tunnel conveyor equipped with heat-resistant glass fibre bars (SMI patent) which ensures that:
    • the conveyor stiffness grants stability to the products passing through, for a compact and well-shrunk pack
    • the conveyor can bear a product weight up to 30 kilos
    • the conveyor bars never get rusted, as it happens when using traditional metallic conveyors
    • the maintenance is easy and low-cost, thanks to the possibility of replacing just the worn out bars
  • Oven cooling system
  • Low power consumption
  • Compliance with CE regulations

Power supply


220 - 240 / 380 - 415 V
3PH + PE / 3PH + N + PE
50/60 Hz
Installed power 18180 W
Air pressure 6 Bar
Required air 16,5 Nl/p*
Maximum output up to 15 ppm**
Product maximum height 380 mm
Sealing bar 760 mm
Maximum size of film reel 750 x Ø 350 mm
Working board height 945 - 1105 mm
Machine size 3645 x 2735 mm
h 2105 - 2265 mm
Machine net weight 1550 Kg
Advised film: LDPE 20 - 100 µ

(*) Normal Iiters per pack.

(**) Packs per minute. The stated speed can change according to the product size, the pack collation and the type of film used.
